Safety bumpers

Mayser offers tactile safety products for machine safety control and collision avoidance applications.

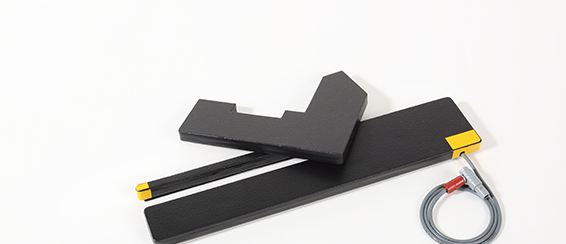

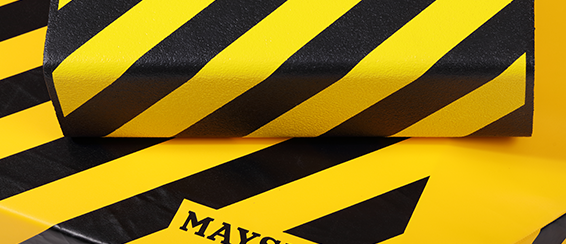

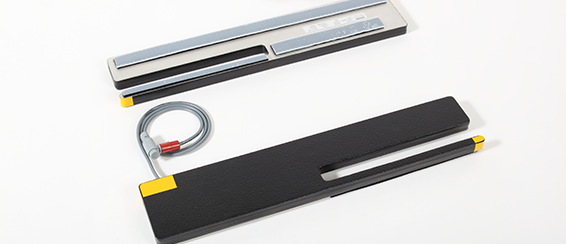

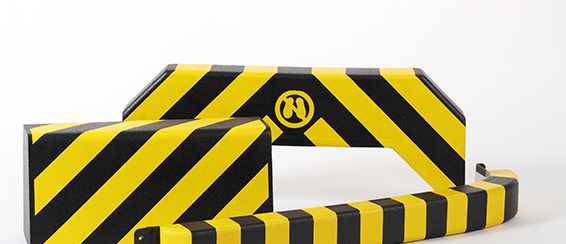

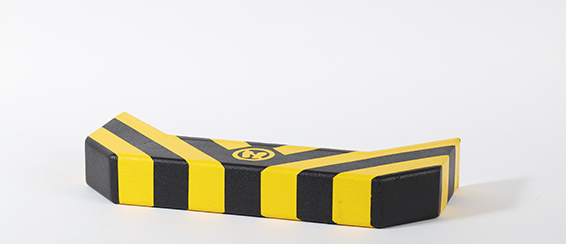

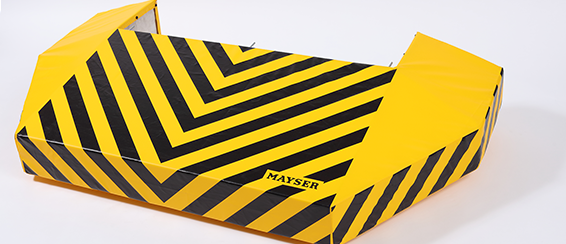

The Mayser safety bumpers are available in several standard sizes, with custom sizes and configurations available.
They use Mayser tactile sensing, with designs that efficiently offer maximum safety, durability, and ease of installation.

Industries

Machine Building & System integration

Technical Data

Operating principle	Pressure-sensitive (NC contact or NO contact principle)
Max. depth Standard version Bumpers based on drawings	400 mm 1200 mm
Applied standards	ISO 13856-3 ISO 13849-1
Degree of protection	IP54 (up to IP65 possible)
Operating temperature	min. -20°C max. +55°C
Chemical resistance (depending on surface)	Diluted acids Alkaline solutions Cleaning products Lubricants Alcohol Disinfectants Bodily fluids Oils
Surfaces	PUR skin Polyester coverings Resistant against sparks during welding Synthetic leather
