Pressure-sensitive anti-pinch sensors & Controllers
Mayser manufactures a large selection of anti-pinch (electrical safety edges) in the Ulm Germany and Belleville, Michigan manufacturing facilities.
Mayser offers multiple sizes in a “mini” edge series for compact/enclosed areas that require safety protection in the cases of moving mechanisms with requirements for unobtrusive sensing solutions.

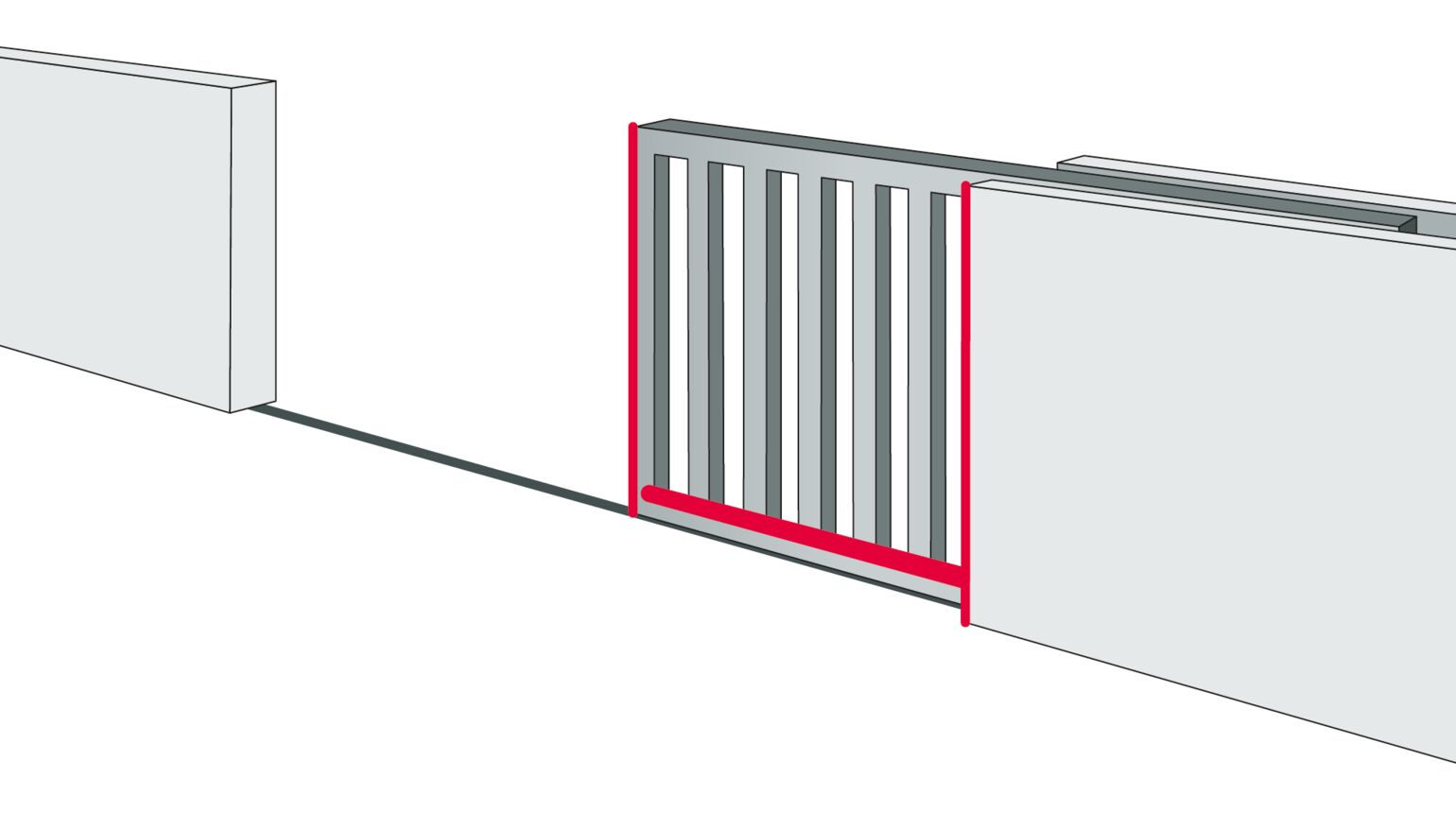

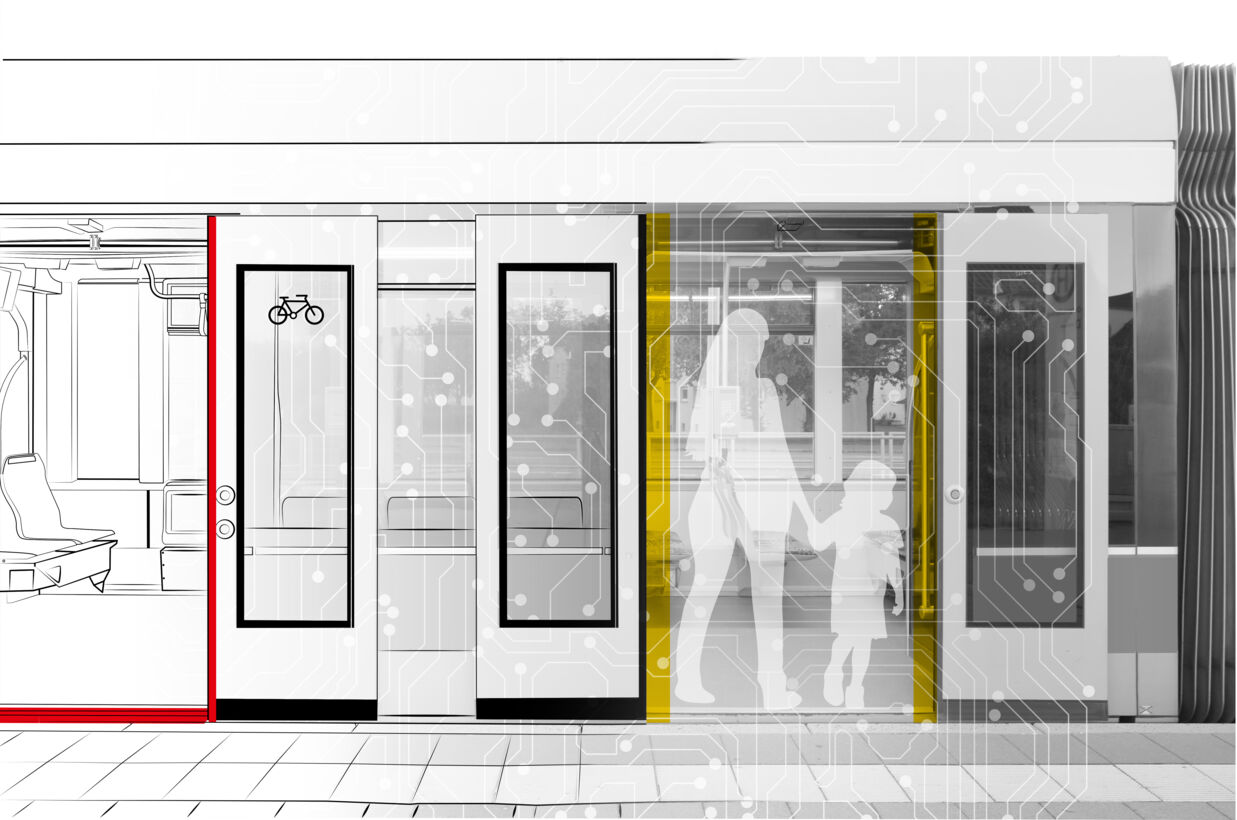

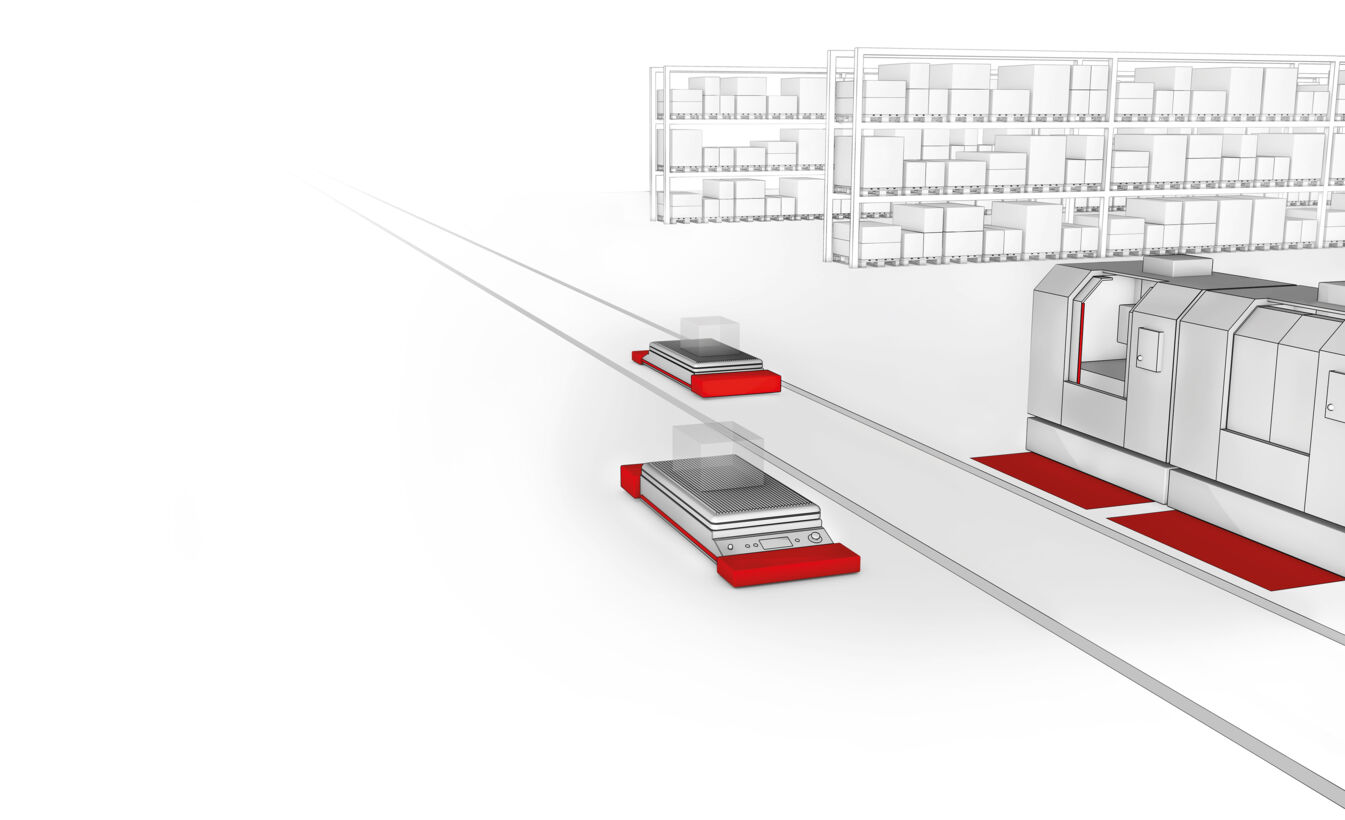

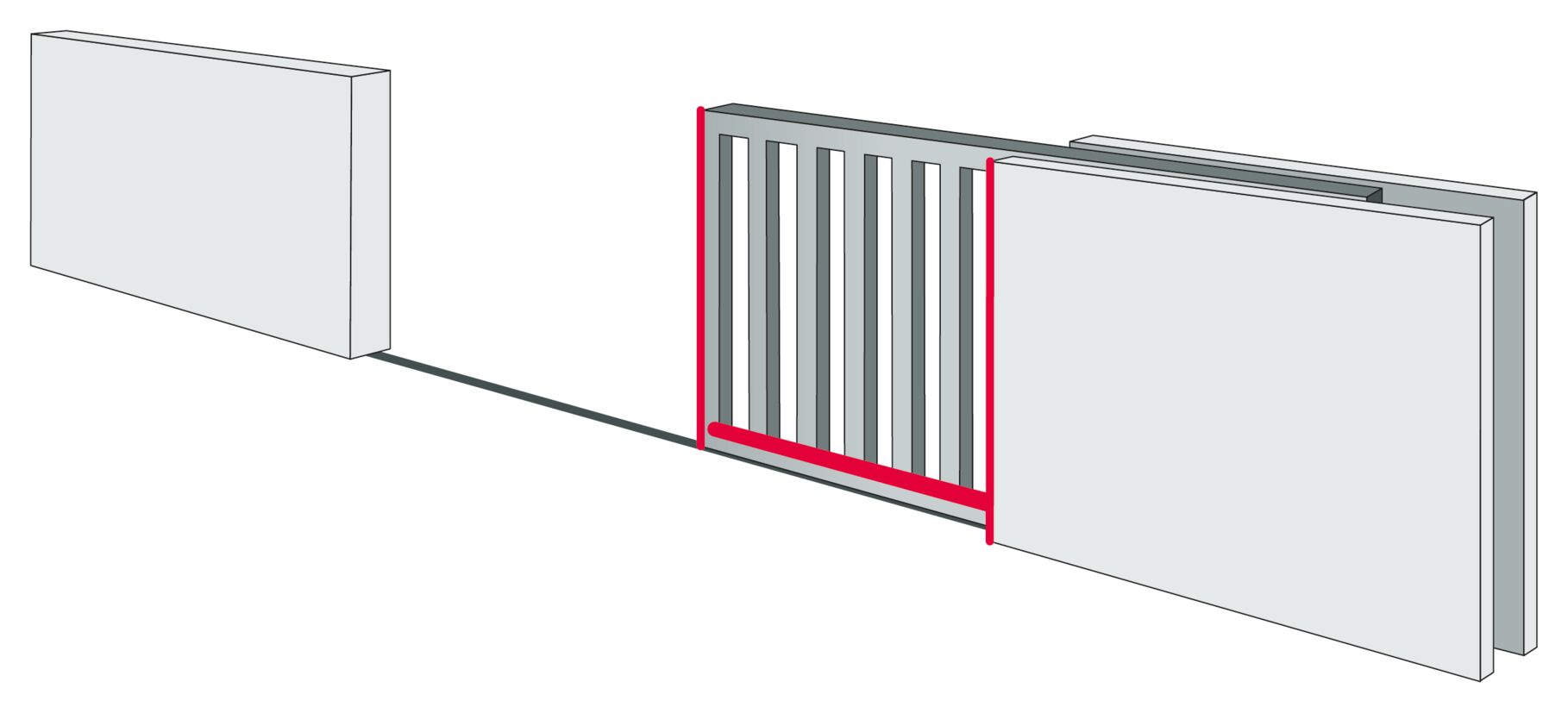

Also offered, large profiles for door and gate, machine guarding, and public transportation.
Offered along with these electric safety edges are the Mayser controllers which can be configured to interface to other controllers or used a direct control to the operation or movement.
Industries
Technical Data
|
|

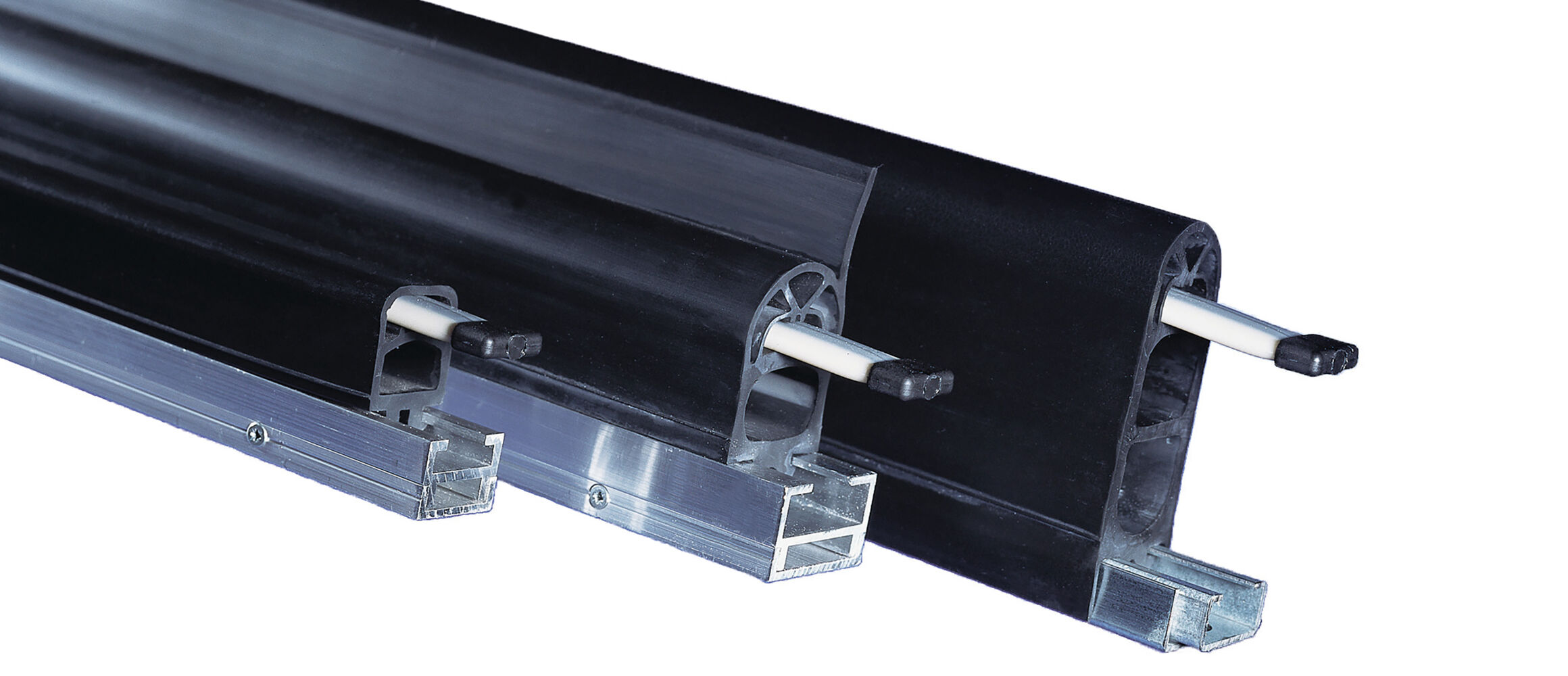

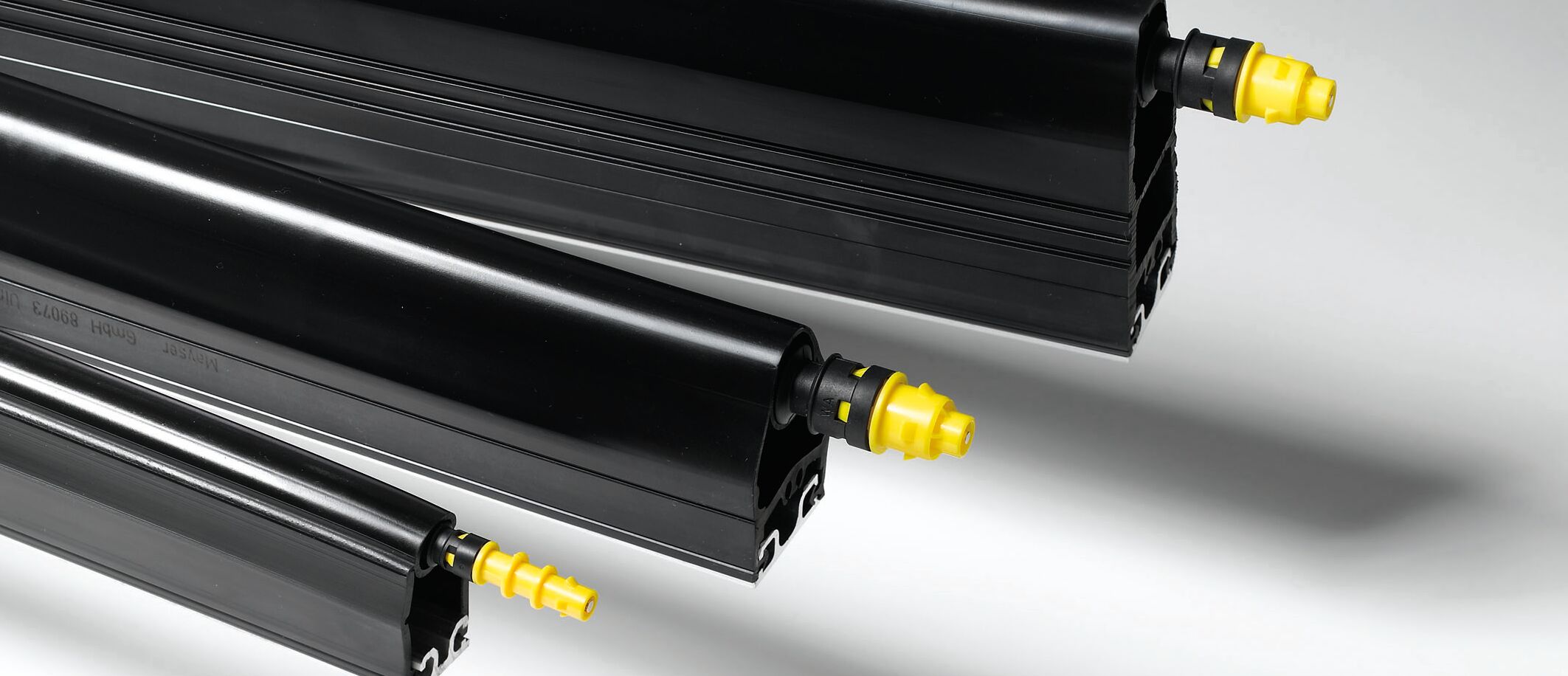

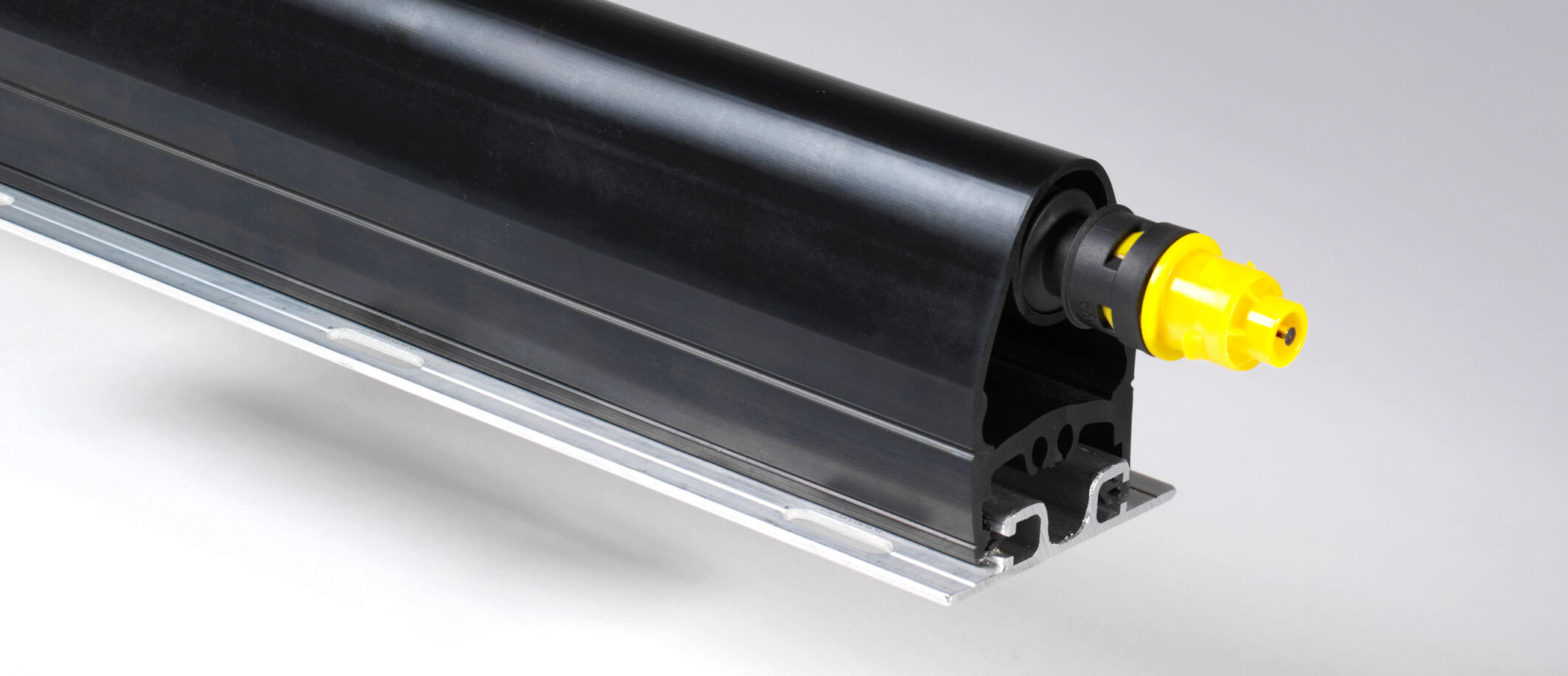

Safety edge
|
Miniature safety edge
/anti-pinch sensor |
Sensor profile
|
|---|---|---|---|
|
Overall height
|
20 - 137 mm
|
4 - 16 mm
|
20 - 70 mm
|
|
Actuation angle
|
up to ±45°
|
up to ±45°
|
up to ±50°
|
|

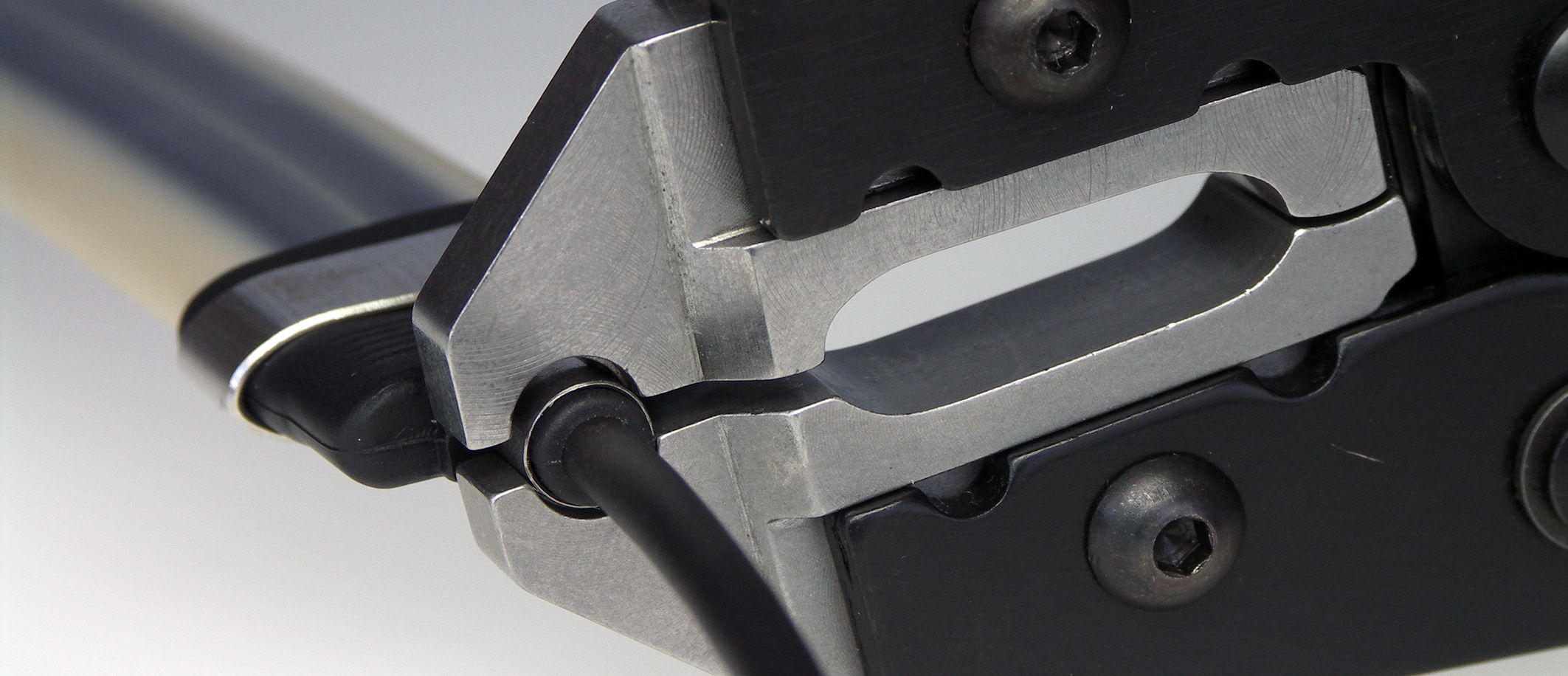

DIY Solution
|
|
•
|
•
|
|
Actuation angle
|
up to ±45°
|
up to ±45°
|
up to ±50°
|
|
Degree of protection
|
IP67
|
IP67
|
IP67
|
|
Applied standards
|
EN 12978
ISO 13856-2 ISO 13849-1 |
ISO 13856-2 ISO 13849-1 |
EN 12978
ISO 13856-2 ISO 13849-1 |
|
Actuating distance
|
8 - 17 mm
|
≤ 1.0 mm
|
1.6 - 8 mm
|
|
Operating temperature
|
min. -20°C
max. + 55°C |
min. -25°C
max. + 80°C |
min. -25°C
max. + 55°C |
Advantages
-
Application configurations: Normally closed (NC) and „Normally open“ (NO) -
Meets environmental stds for safety edges and profiles -
Works in a variety of application -
Variable sizes for most applications -
Simple interface to extisting controls -
For systems up to Category 3 PL d
