Safety edges

Safety edges are sensors that protect people from injuries at shearing and pinching edges. If the safety edge encounters an obstruction, e.g. if a hand gets in the way of a closing door, it immediately stops the automatic movement.

Industries

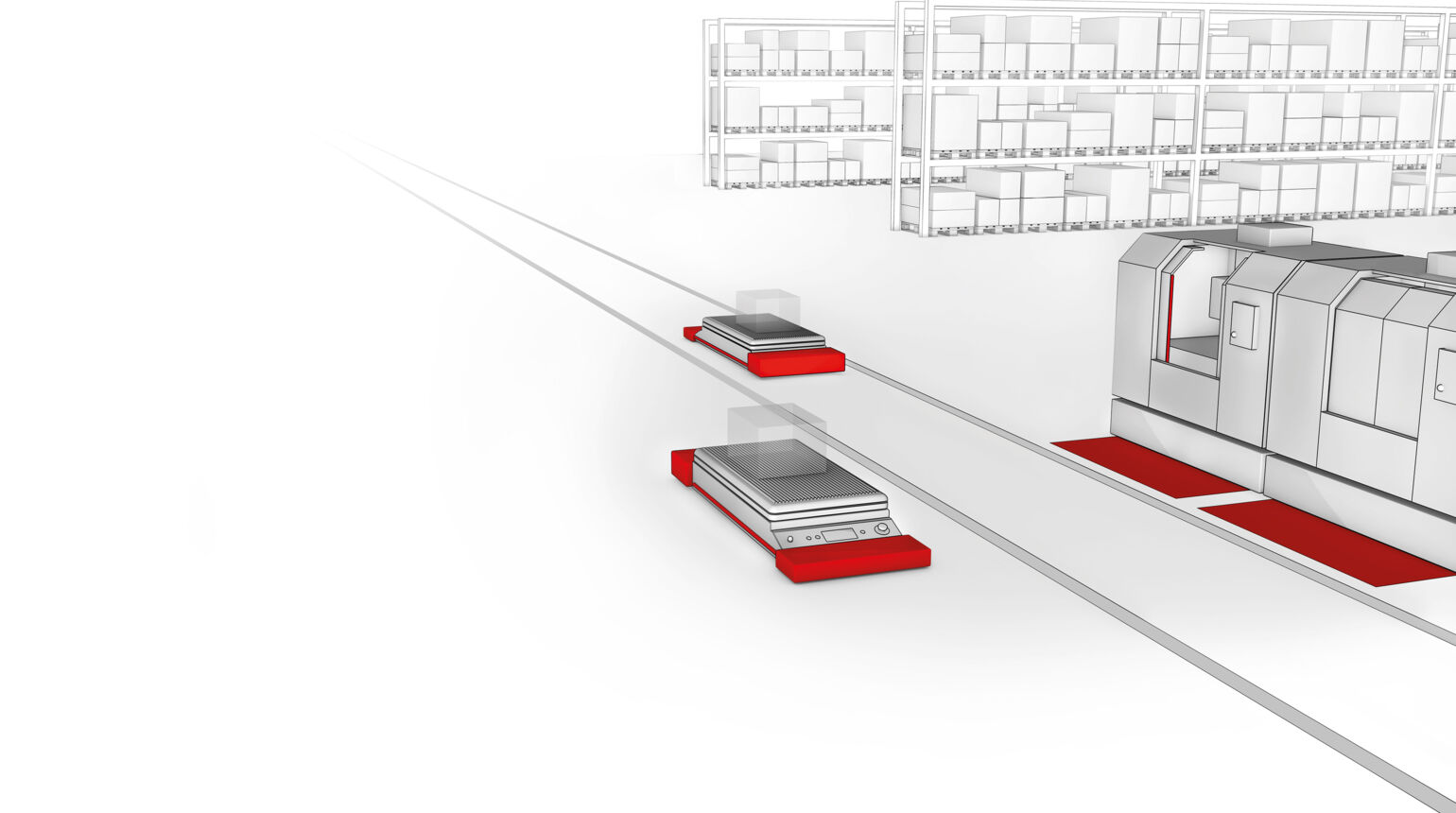

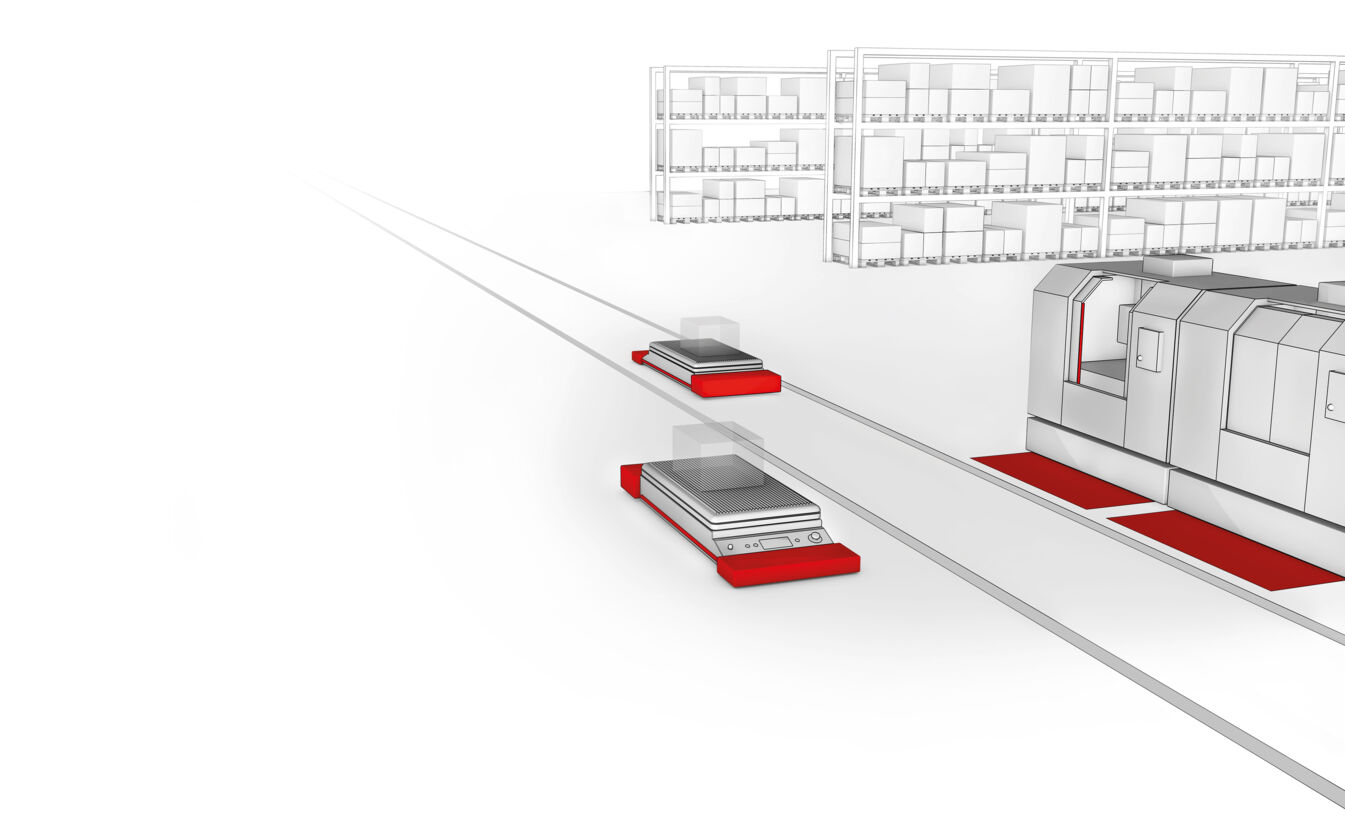

Machine Building & System integration

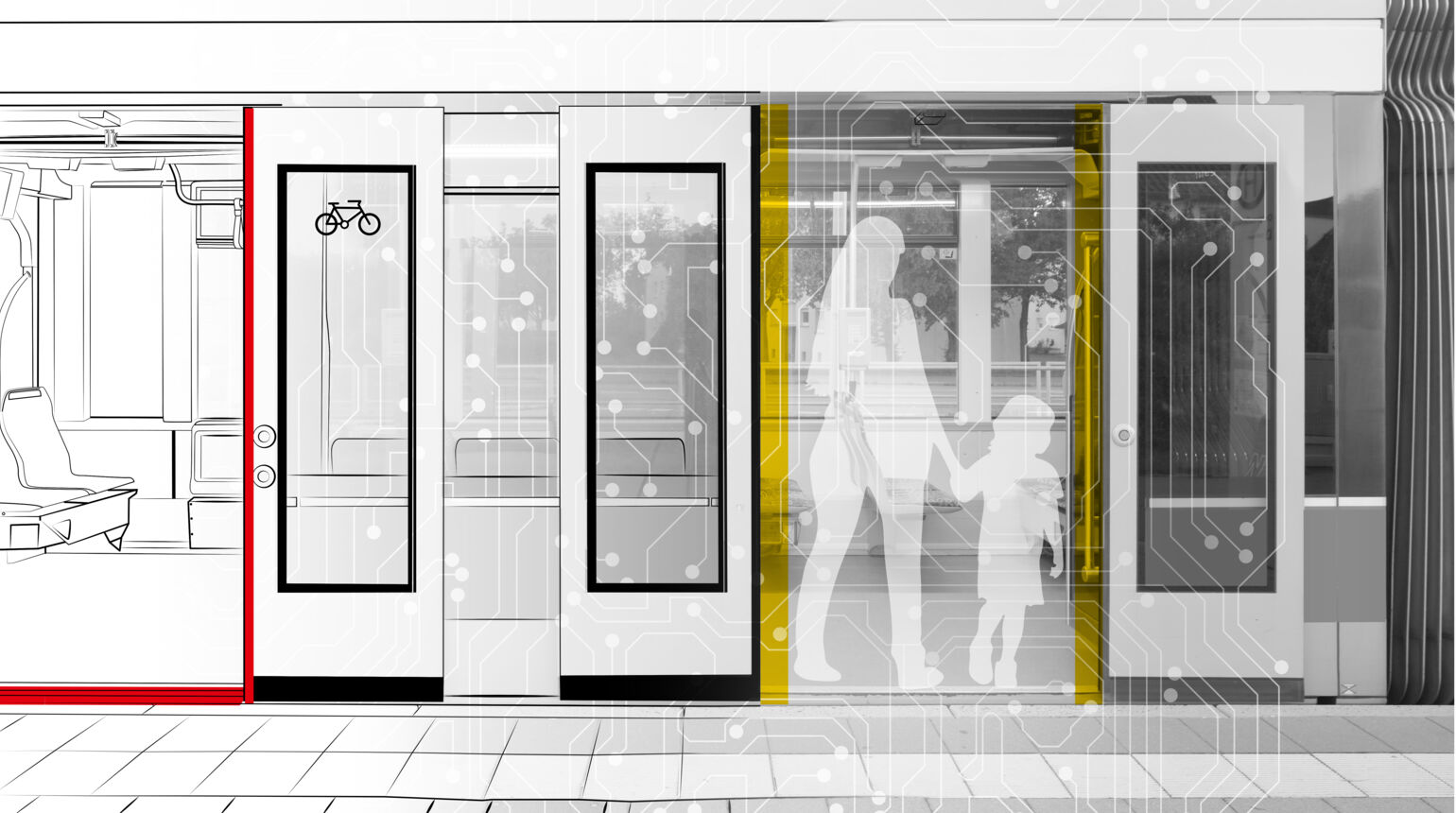

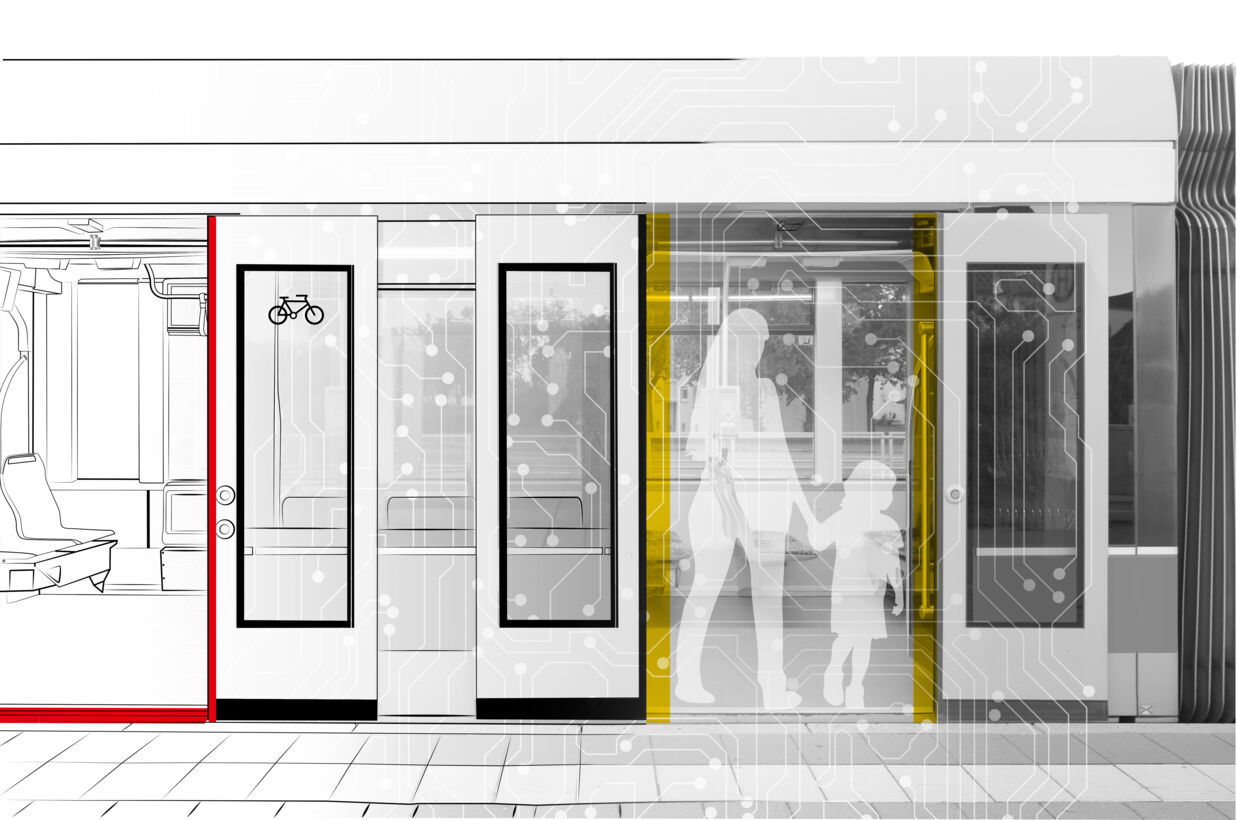

Public Transport

Technical Data

	Safety edge
Operating principle	NC contact and NO contact principle
Overall height	20 - 137 mm
Actuation angle	up to ±45°
Applied standards	EN 12978 ISO 13849-1 ISO 13856-2
Degree of protection	IP67
Operating temperature	min. -20°C max. +55°C
Actuationg distance	8 - 17 mm
