Normally closed safety edges
Safety edges are sensors that protect operators from coming between shearing and pinching edges. If the safety edge encounters an obstruction, e.g. if a hand gets in the way of a closing door, it immediately stops the automatic movement.

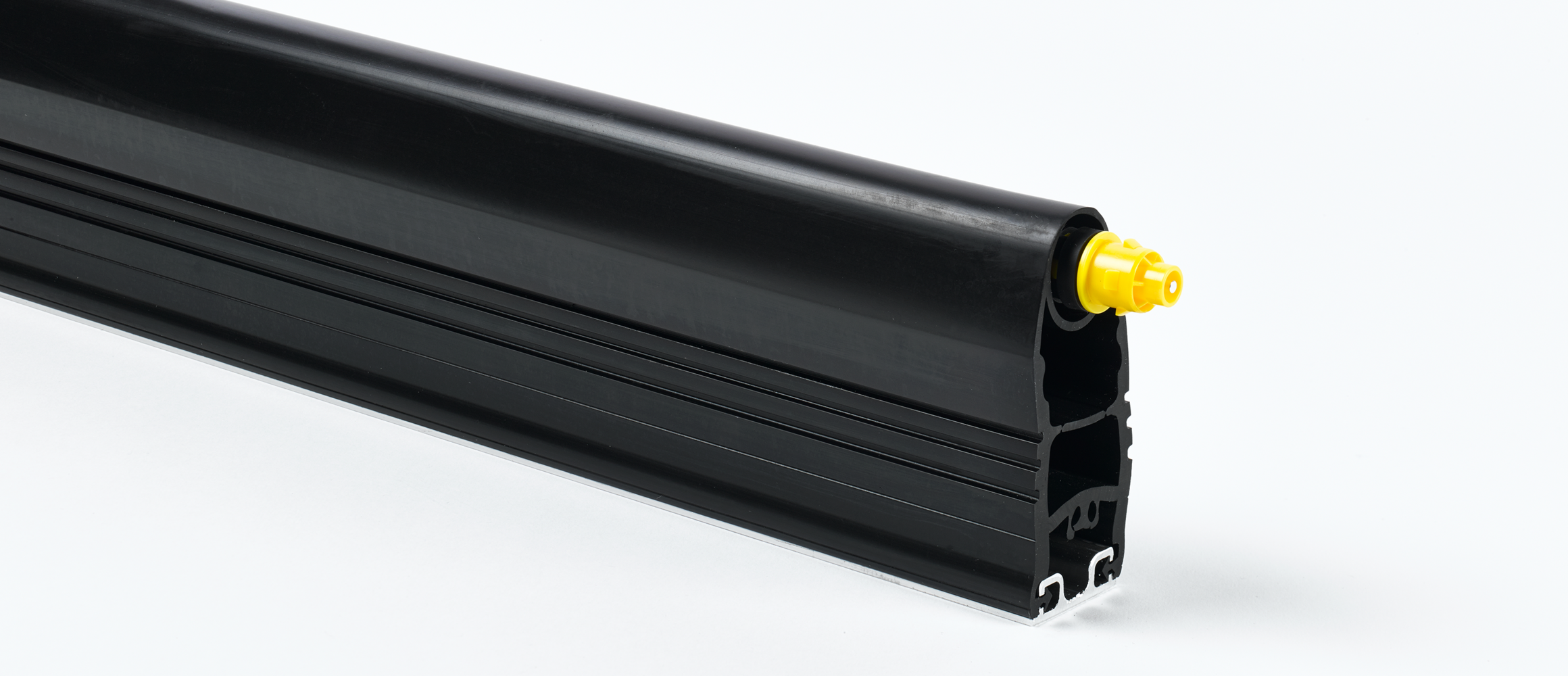

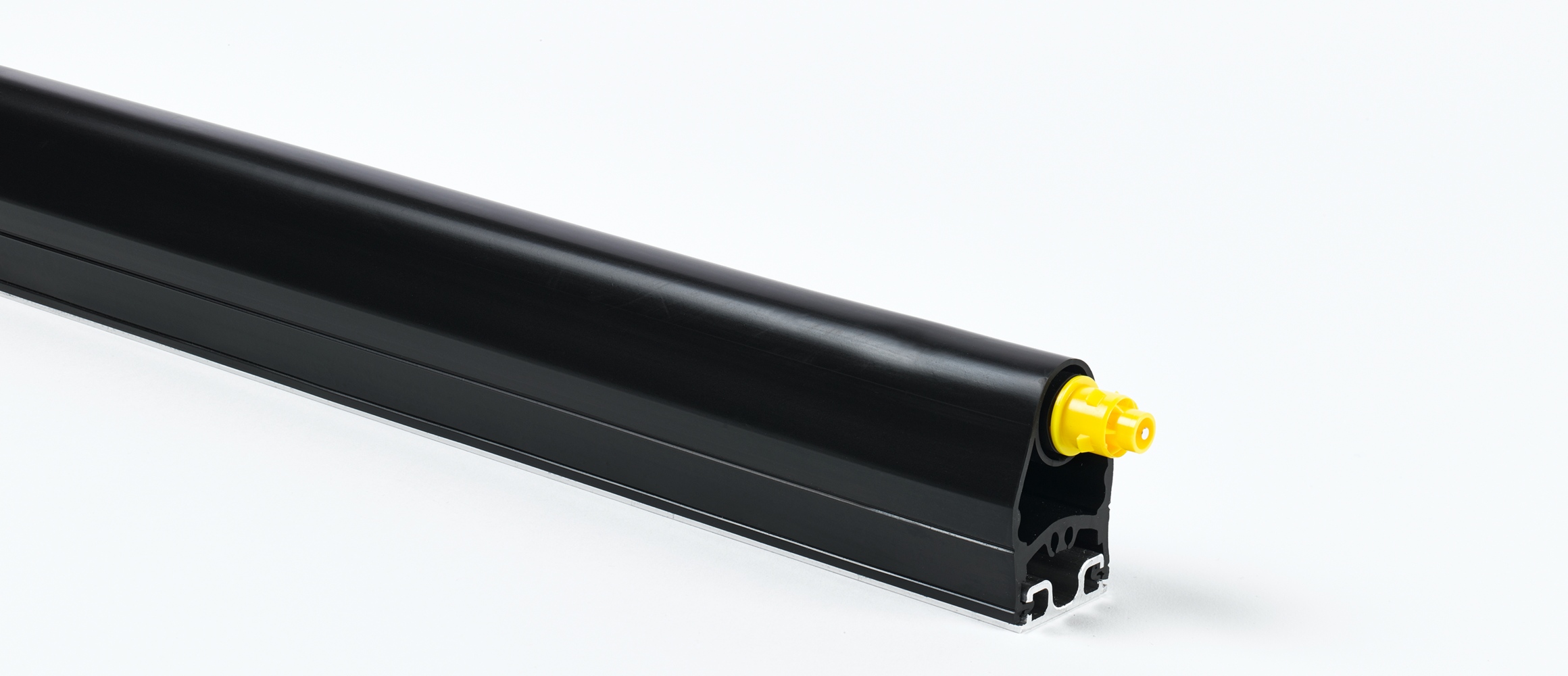

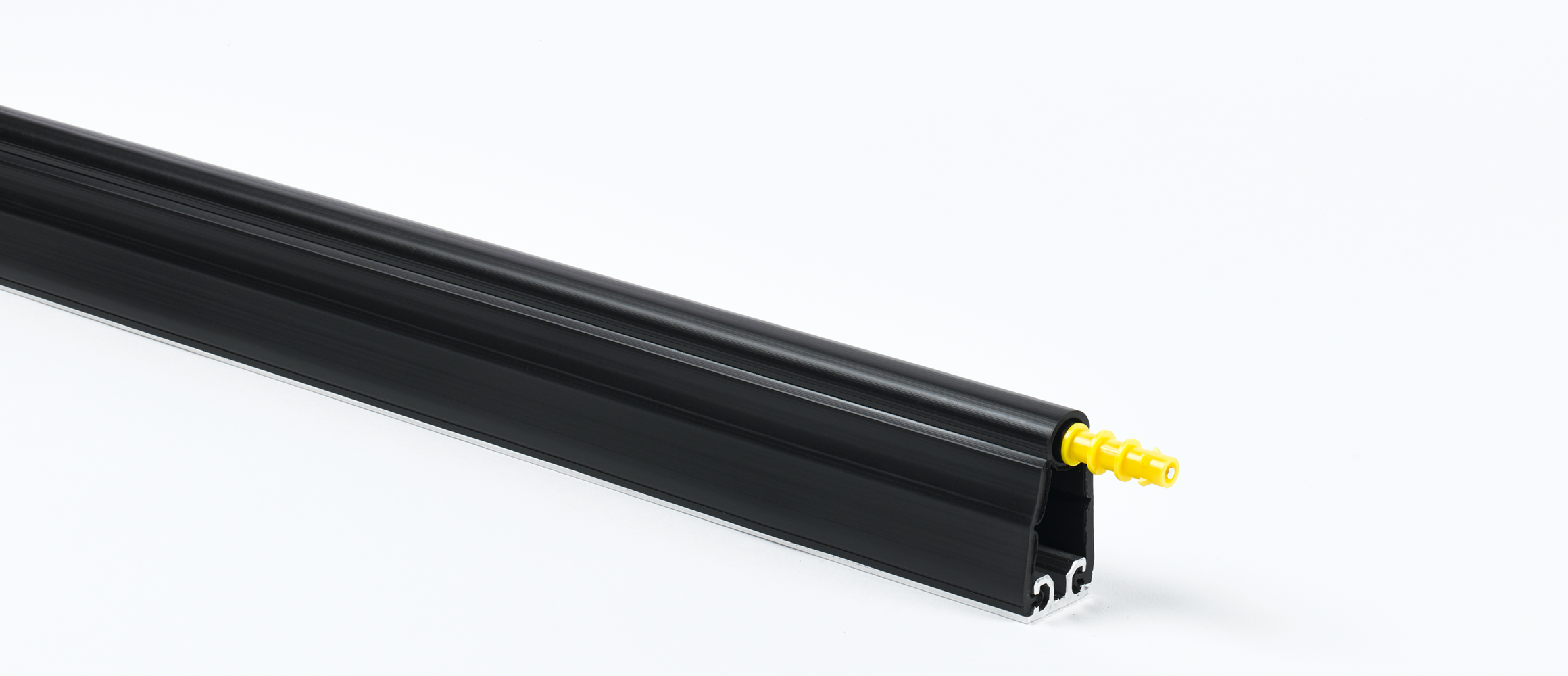

Our SL/NC (NC = normally closed) safety edges feature a chain of linked NC contacts integrated in a rubber profile. When the safety edge is actuated, an existing contact is broken.
- directly connectable to the following system without control unit
- also available in a DIY version

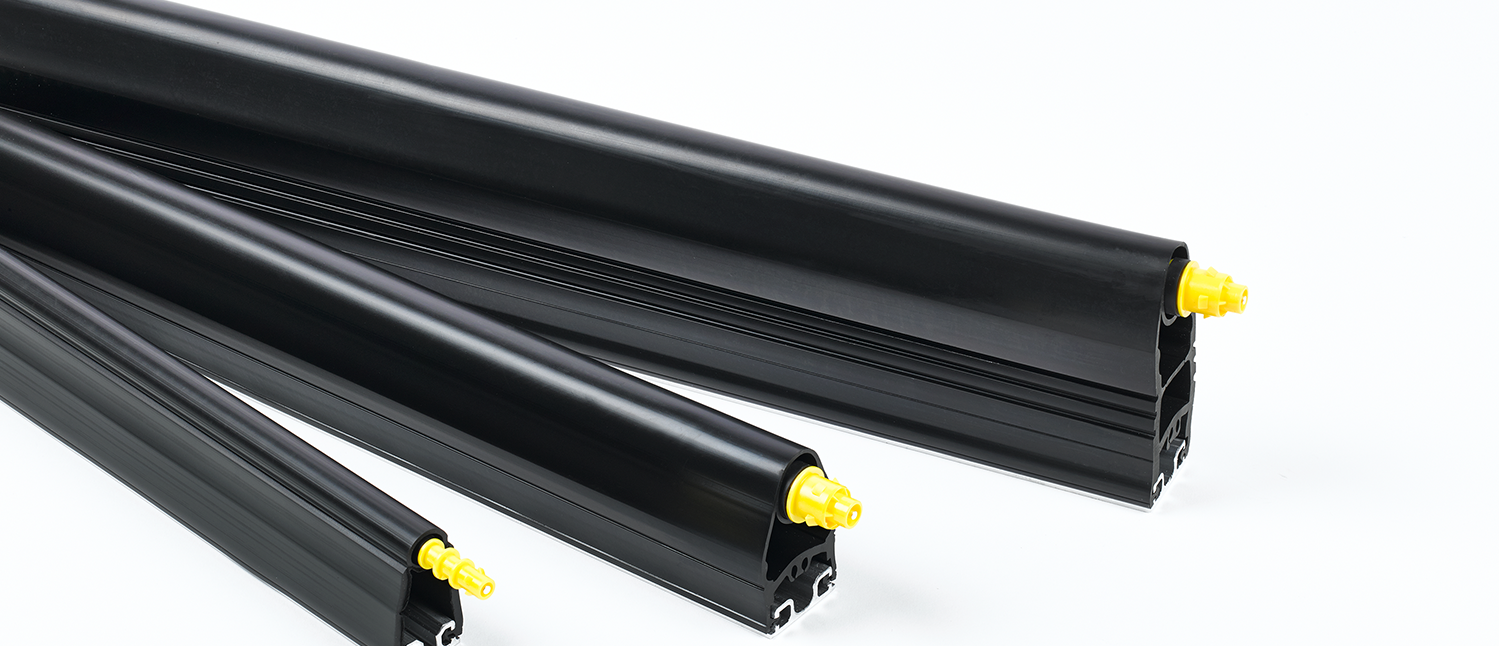

- wide range of profile geometries available
- short-circuit proof due to double insulation
- for systems up to Cat 3 PL d
- customised lengths available
